This is 2024 model-year stock. Brand new & unused — priced low to clear inventory.

    $2,429.30

    Add to wishlist
    SKU: 47TSAAA8A10

      ZTX4 60

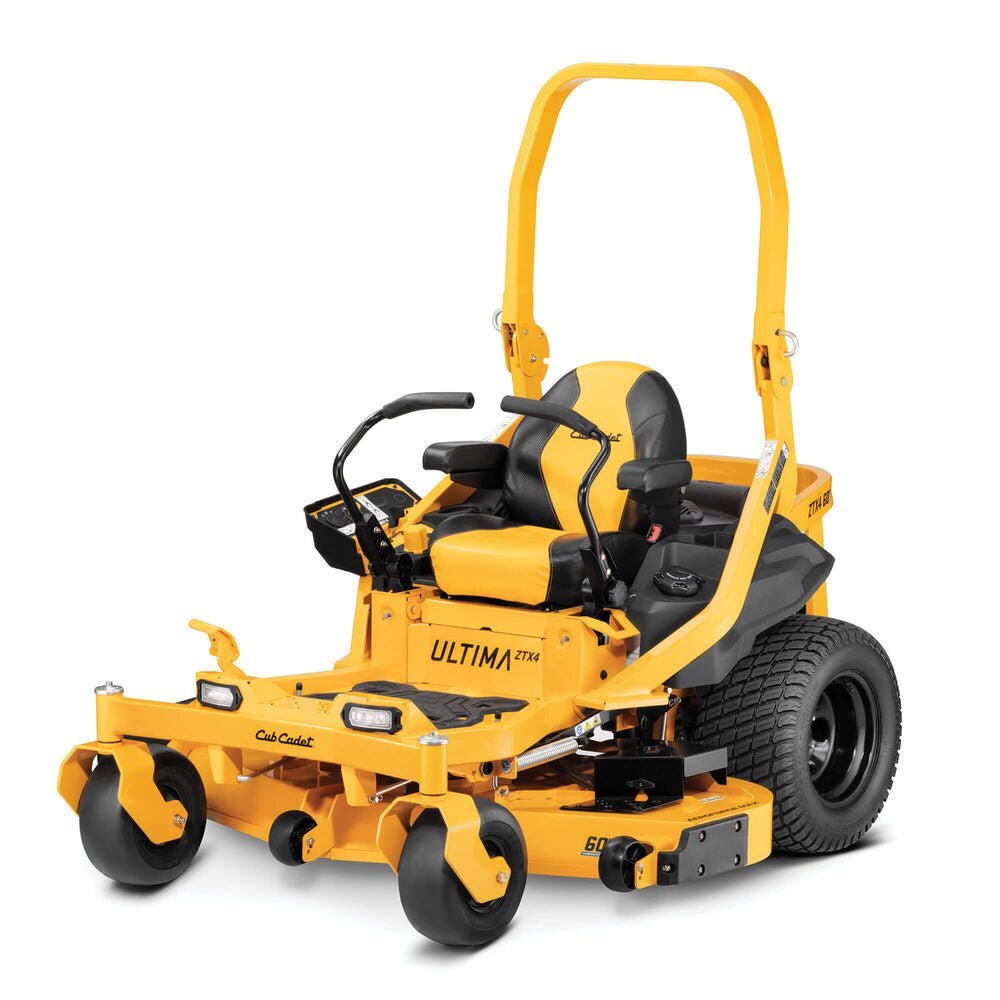

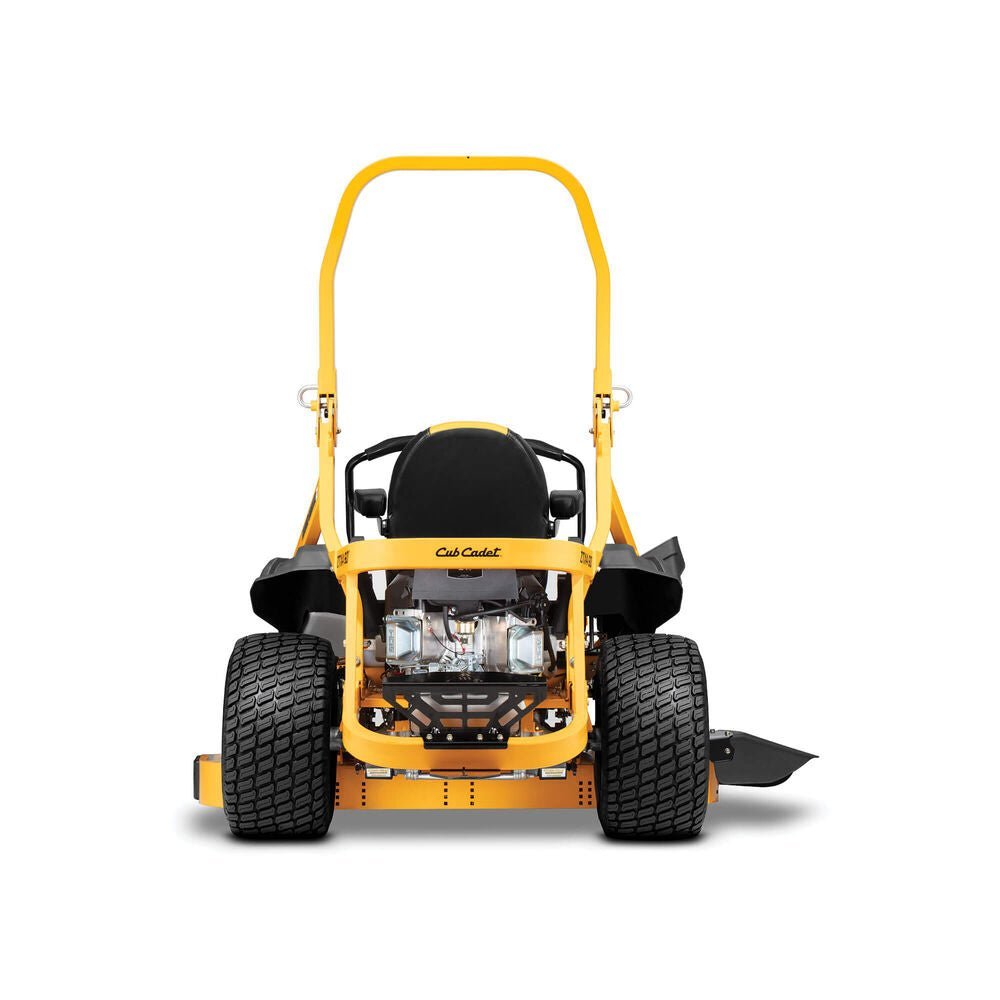

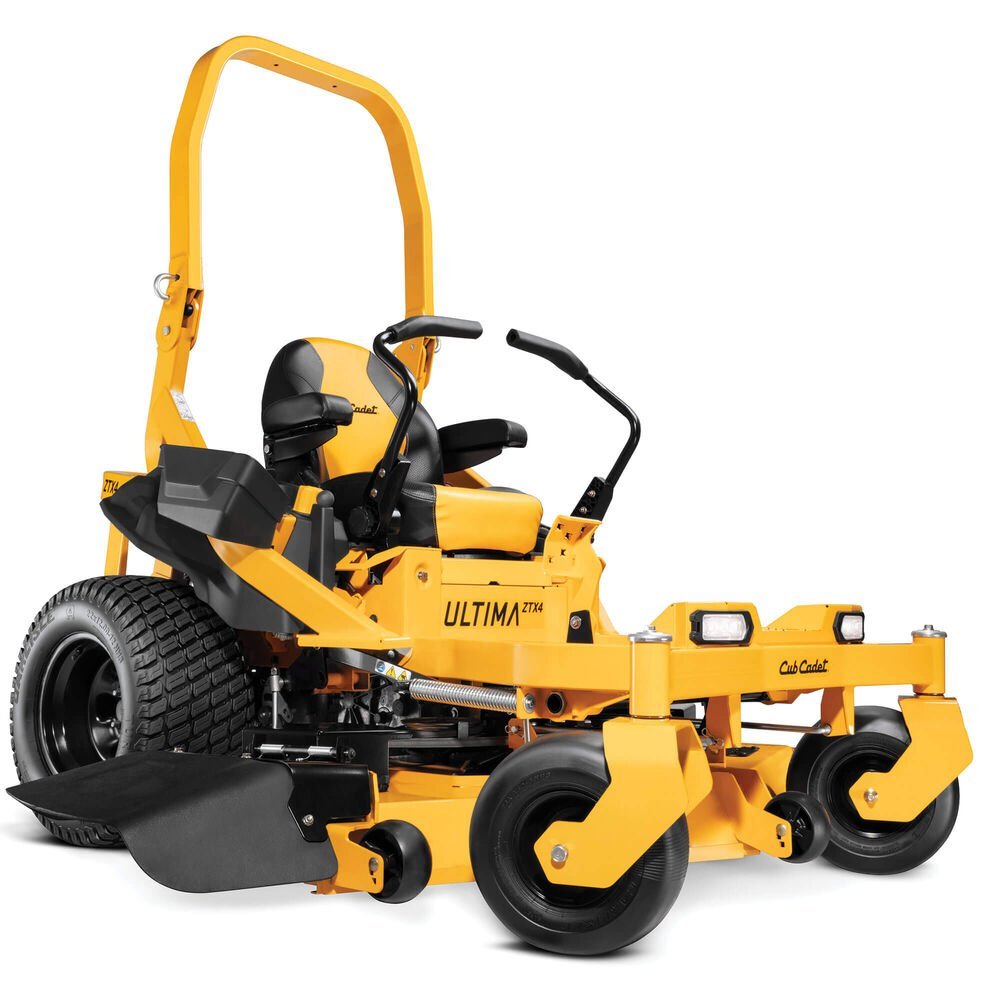

      The Cub Cadet® Ultima Series ZTX4 60 is a 60-inch zero-turn lawn mower with a 26 HP engine. It features an AeroForce™ Max reinforced fabricated deck, which is designed to provide a high-quality cut with few clumps and an even finish. The mower is made from 10-gauge reinforced steel and has low-maintenance spindles. Its smooth arc triple blades and deep dome deck design allow you to mow a wide area of grass. With dual hydrostatic transmissions, it offers quick ground speeds, giving your yard a professional look.

      10-gauge steel with 2-gauge reinforcementDual Led HeadlightsQuick-Adjust Lap Bars
      High Back SeatEasy MaintenanceReduced Vibration



      Engine

      • Engine Brand: Kohler®
      • Engine Model: Pro 7000 series
      • Engine Model Number: ZT745
      • Engine Displacement: 747cc
      • Engine Output: 26HP
      • Starter Type: Electric
      • Fuel Tank Capacity: 5.5 gal. US
      • Cylinders: Twin
      • Engine Start: Ignition Key
      • Engine Oil Capacity: 2 qt US
      • Lubrication: Fully pressurized
      • Charging System: 12 amp regulated
      • Fuel Gauge: Yes
      • Governor: Mechanical
      • Choke: Separate Choke
      • Air Filter: Dual element
      • Oil Filter: Yes
      • Fuel Delivery: Carburetor

      Battery

      • Battery: 210 CCA
      • Battery Type: AGM (Absorbent Glass Mat)
      • Battery Voltage: 12V

      Drive System

      • Transmission: Hydro-Gear ZT 3100
      • Forward Speed: 8.5 MPH
      • Reverse Speed: 3.5 MPH
      • Drive System: Hydrostatic

      Cutting Deck

      • Deck Cutting Width: 60 in
      • Deck Wash: No
      • Deck Material: 10-gauge steel with 2-gauge reinforcement
      • Deck Engagement (PTO): Electric
      • Deck Construction: Fabricated
      • Blade(s): Three
      • Deck Lift: Foot pedal with Dial Adjust
      • Cutting Height Range: 1″ – 4.75″
      • Anti-Scalping: Three gauge wheels
      • Deck Positions: 17

      Warranty

      • Warranty: 4-year 800 hours
      • Frame Warranty: Lifetime Limited
      • Deck Shell Warranty: Lifetime limited
      • Commercial Warranty: 4-year 800 hours

      Chassis

      • Frame: 1.5″ x 3″ tubular steel
      • Turning Radius: 0°
      • ROPS: Yes
      • Rear Tow Hitch: Yes
      • Corrosion Protection: Yes

      Controls

      • Cruise Control: No
      • Brakes: Disc
      • Steering Control:Lap Bars

      Comfort

      • Seat Type: 20″ high back
      • Armrests: Yes
      • Seat Adjustment: Lever

      Wheels

      • Rear Tires: 22″x 12″-12″
      • Front Tires: 13″x 6.5″-6″
      • Tire Tread: Turf Master / Multi Trac

      Additional Specifications

      • Hour Meter: Yes
      • Mulch Kit: Available separately
      • Headlight(s): Dual-LED
      • Cup Holder: Yes
      • Operator Presence System: Yes
      • Parking Brake: Lap Bar Integrated
      • Model Number: 47TSAAA8A10

      Specifications

      • Series Ultima Series™ ZTX

      AIR FILTER: 32 883 13-S1 OR 490-200-K064
      OIL FILTER: 52 050 02-S
      FUEL FILTER: 24 050 13-S1
      SPARK PLUG: 25 132 14-S
      PTO BELT: NA
      DECK BELT: 754P06094 OR 490-501-C090
      DRIVE BELT: 954-04317A
      TRANS FILTER: HG-52114P
      BLADES: 742P05516
      XTREME BLADES: 01005381P-X
      IGNITION KEY: 925-1745A
      ENGINE OIL: 25 367 65-S
