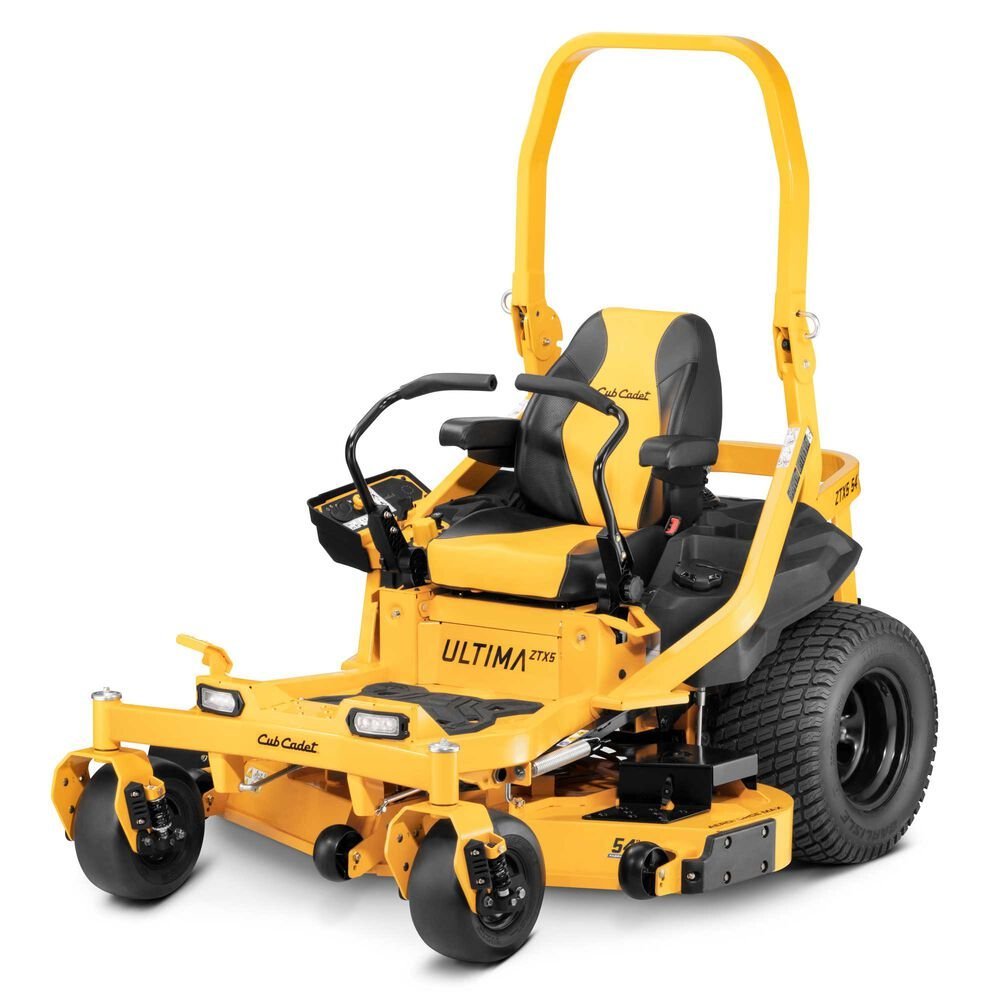

CUB CADET ULTIMA ZTX5 60 47RKAAA8A10
This is 2024 model-year stock. Brand new & unused — priced low to clear inventory.
$1,499.30
SKU: 47RKAAA8A10
ZTX5 60
SET UP AND PREP FEES MAY APPLY
The Cub Cadet® Ultima Series ZTX5 60 60-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.
- Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
- Equipped with a powerful 24 HP Kawasaki® FS Series V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
- Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
Engine
- Engine Brand: Kawasaki®
- Engine Model: FS Series
- Engine Model Number: 730V
- Engine Displacement: 726cc
- Engine Output: 24HP
- Starter Type: Electric
- Fuel Tank Capacity: 5.5 gal. US (20.82 L)
- Cylinders: Twin
- Engine Start: Ignition Key
- Engine Oil Capacity: 2.1 qt US ( 2 L)
- Lubrication: Fully pressurized
- Charging System: 12 amp regulated
- Fuel Gauge: Yes
- Governor: Mechanical
- Choke: Separate Choke
- Air Filter: Single element
- Oil Filter: Yes
- Fuel Delivery: Carburetor
Battery
- Battery: 210 CCA
- Battery Type: AGM (Absorbent Glass Mat)
- Battery Voltage: 12V
Drive System
- Transmission: Hydro-Gear ZT 3200
- Forward Speed: 8.5 MPH
- Reverse Speed: 3.5 MPH
- Drive System: Hydrostatic
Cutting Deck
- Deck Cutting Width: 60“
- Deck Wash: No
- Deck Material: 10-gauge steel with 2-gauge reinforcement
- Deck Engagement: (PTO) Electric
- Deck Construction: Fabricated
- Blade(s): Three
- Deck Lift: Foot pedal with Dial Adjust
- Cutting Height Range: 1″ – 4.75″
- Anti-Scalping: Three gauge wheels
- Deck Positions: 17
Warranty
- Warranty: 4-year 800 hours
- Frame Warranty: Lifetime Limited
- Deck Shell Warranty: Lifetime limited
- Commercial Warranty: 4-year 800 hours
Chassis
- Frame: 1.5″ x 3″ tubular steel
- Turning Radius: 0°
- ROPS: Yes
- Rear Tow Hitch: Yes
- Corrosion Protection: Yes
Controls
- Cruise Control: No
- Steering Control: Lap Bars
Comfort
- Seat Type: 24″ high back
- Armrests: Yes
- Seat Adjustment: Lever
- Front Caster Suspension: Yes
Wheels
- Rear Tires: 23″x 12″-12″
- Front Tires: 13″x 6.5″-6″
Additional Specifications
- Hour Meter: Yes
- Mulch Kit: Available separately
- Headlight(s:) Dual-LED
- Cup Holder: Yes
- Operator Presence System: Yes
- Parking Brake: Lap Bar Integrated
- Model Number: 47AKAAA8A10
- AIR FILTER: KM-11013-0752
- PRE-FILTER: KM-11013-7046
- OIL FILTER: KM-49065-0721
- FUEL FILTER: KM-49019-0031
- SPARK PLUG: KM-BPR4ES
- DECK BELT:
- DRIVE BELT:
- BLADE:
- MULCH BLADE:
- IGNITION KEY: 925-1745A
- TRANS FILTER: HG-52114P
- TRANS OIL: 72750 KIT
- ENGINE OIL: 490-000-C044
